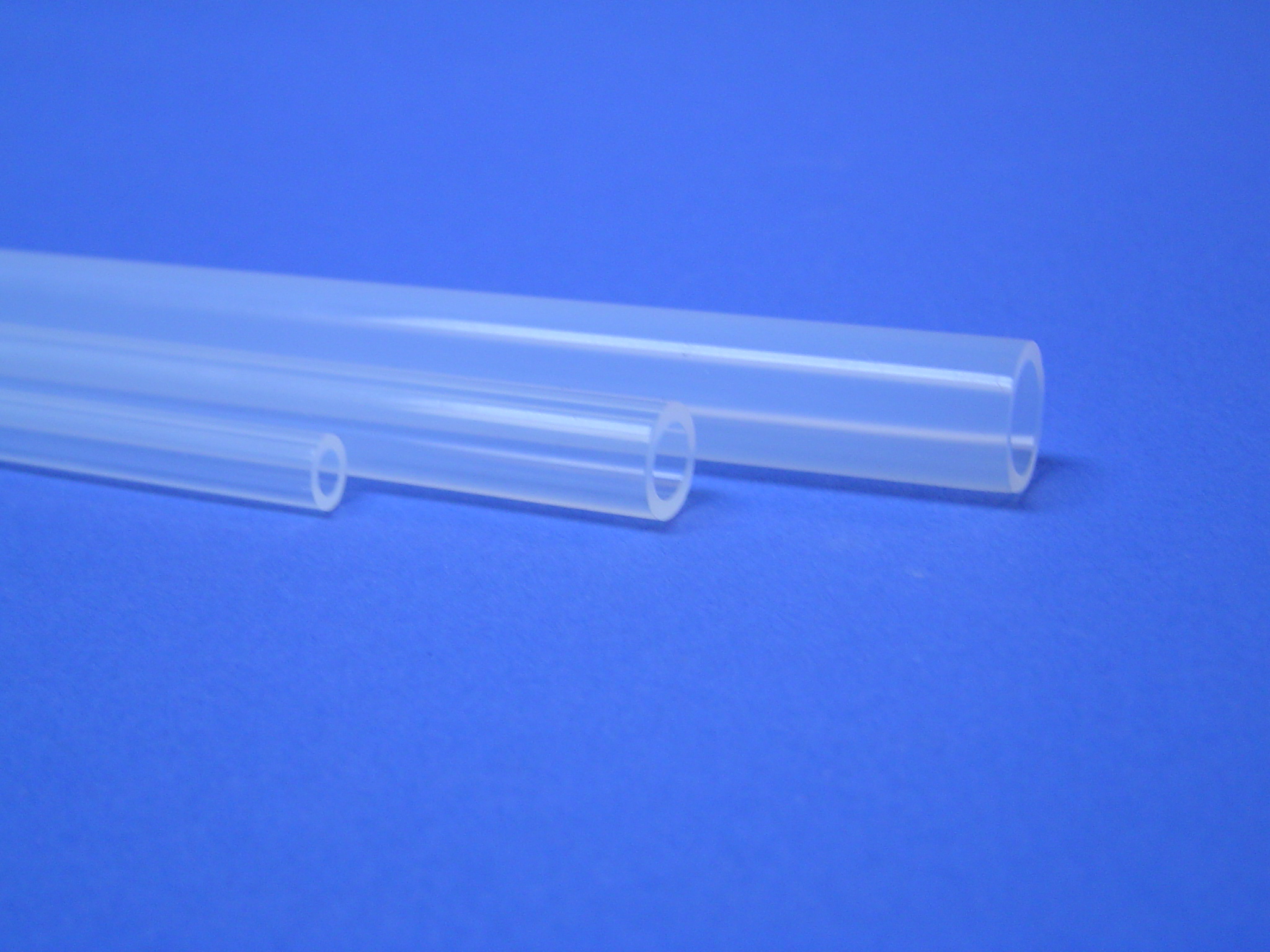

FEP Standard and Heavy Wall Tubing
Fluoropolymer FEP Tubing
In addition to its low co-efficient of friction, FEP Tubing offers excellent performance at both low and high temperatures, along with outstanding resistance to most chemicals.
FEP tubing is non-aging, nontoxic and non-allergenic. It maintains its stiffness, has excellent strength and is crack-resistant. FEP tubing has the best abrasion resistance of the fluoropolymer tubings. It is chemically inert and heat resistant. It is bendable even at -454 degrees F.
FEP tubing is non-aging, nontoxic and non-allergenic. It maintains its stiffness, has excellent strength and is crack-resistant. FEP tubing has the best abrasion resistance of the fluoropolymer tubings. It is chemically inert and heat resistant. It is bendable even at -454 degrees F.
- Clear and translucent color.
- Temperature Range -400 ºF to +400 ºF.
- Durometer shore D 56 ±5
- Specifications ASTM D-3295-81a
Catalog Number |
Item Descripiton |
Inside Diameter (ID) |
Outside Diameter (OD) |
Decimal Nominal Inside Diameter (ID) |
Wall Thickness |
|---|---|---|---|---|---|
| TFI0132-015 /Asset/fep tubing04.JPG | N/A FEP Standard Wall Tubing | Inside Diameter (ID) N/A 1/32 " | Outside Diameter (OD) N/A 1/16 " | Decimal Nominal Inside Diameter (ID) N/A .031 " | Wall Thickness N/A 0.015 " |
| TFI0116-030 /Asset/fep tubing04.JPG | N/A FEP Standard Wall Tubing | Inside Diameter (ID) N/A 1/16 " | Outside Diameter (OD) N/A 1/8 " | Decimal Nominal Inside Diameter (ID) N/A .062 " | Wall Thickness N/A 0.030 " |
| TFI0332-030 /Asset/fep tubing04.JPG | N/A FEP Standard Wall Tubing | Inside Diameter (ID) N/A 3/32 " | Outside Diameter (OD) N/A 5/32 " | Decimal Nominal Inside Diameter (ID) N/A .094 " | Wall Thickness N/A 0.030 " |
| TFI0108-030 /Asset/fep tubing04.JPG | N/A FEP Standard Wall Tubing | Inside Diameter (ID) N/A 1/8 " | Outside Diameter (OD) N/A 3/16 " | Decimal Nominal Inside Diameter (ID) N/A .125 " | Wall Thickness N/A 0.030 " |
| TFI0316-030 /Asset/fep tubing04.JPG | N/A FEP Standard Wall Tubing | Inside Diameter (ID) N/A 3/16 " | Outside Diameter (OD) N/A 1/4 " | Decimal Nominal Inside Diameter (ID) N/A .188 " | Wall Thickness N/A 0.030 " |
| TFI0104-030 /Asset/fep tubing04.JPG | N/A FEP Standard Wall Tubing | Inside Diameter (ID) N/A 1/4 " | Outside Diameter (OD) N/A 5/16 " | Decimal Nominal Inside Diameter (ID) N/A .250 " | Wall Thickness N/A 0.030 " |
| TFI0516-030 /Asset/fep tubing04.JPG | N/A FEP Standard Wall Tubing | Inside Diameter (ID) N/A 5/16 " | Outside Diameter (OD) N/A 3/8 " | Decimal Nominal Inside Diameter (ID) N/A .313 " | Wall Thickness N/A 0.030 " |
| TFI0308-030 /Asset/fep tubing04.JPG | N/A FEP Standard Wall Tubing | Inside Diameter (ID) N/A 3/8 " | Outside Diameter (OD) N/A 7/16 " | Decimal Nominal Inside Diameter (ID) N/A .375 " | Wall Thickness N/A 0.030 " |
| TFI0716-030 /Asset/fep tubing04.JPG | N/A FEP Standard Wall Tubing | Inside Diameter (ID) N/A 7/16 " | Outside Diameter (OD) N/A 1/2 " | Decimal Nominal Inside Diameter (ID) N/A .438 " | Wall Thickness N/A 0.030 " |
| TFI0102-030 /Asset/fep tubing04.JPG | N/A FEP Standard Wall Tubing | Inside Diameter (ID) N/A 1/2 " | Outside Diameter (OD) N/A 9/16 " | Decimal Nominal Inside Diameter (ID) N/A .500 " | Wall Thickness N/A 0.030 " |
| TFI0916-030 /Asset/fep tubing04.JPG | N/A FEP Standard Wall Tubing | Inside Diameter (ID) N/A 9/16 " | Outside Diameter (OD) N/A 5/8 " | Decimal Nominal Inside Diameter (ID) N/A .562 " | Wall Thickness N/A 0.030 " |
| TFH0116-063 /Asset/fep tubing04.JPG | N/A FEP Heavy Wall Tubing | Inside Diameter (ID) N/A 1/16 " | Outside Diameter (OD) N/A 3/16 " | Decimal Nominal Inside Diameter (ID) N/A .062 " | Wall Thickness N/A 0.063 " |
| TFH0108-063 /Asset/fep tubing04.JPG | N/A FEP Heavy Wall Tubing | Inside Diameter (ID) N/A 1/8 " | Outside Diameter (OD) N/A 1/4 " | Decimal Nominal Inside Diameter (ID) N/A .125 " | Wall Thickness N/A 0.063 " |
| TFH0532-047 /Asset/fep tubing04.JPG | N/A FEP Heavy Wall Tubing | Inside Diameter (ID) N/A 5/32 " | Outside Diameter (OD) N/A 1/4 " | Decimal Nominal Inside Diameter (ID) N/A .157 " | Wall Thickness N/A 0.047 " |
| TFH0104-063 /Asset/fep tubing04.JPG | N/A FEP Heavy Wall Tubing | Inside Diameter (ID) N/A 1/4 " | Outside Diameter (OD) N/A 3/8 " | Decimal Nominal Inside Diameter (ID) N/A .250 " | Wall Thickness N/A 0.063 " |
| TFH0308-063 /Asset/fep tubing04.JPG | N/A FEP Heavy Wall Tubing | Inside Diameter (ID) N/A 3/8 " | Outside Diameter (OD) N/A 1/2 " | Decimal Nominal Inside Diameter (ID) N/A .375 " | Wall Thickness N/A 0.063 " |
| TFH0102-063 /Asset/fep tubing04.JPG | N/A FEP Heavy Wall Tubing | Inside Diameter (ID) N/A 1/2 " | Outside Diameter (OD) N/A 5/8 " | Decimal Nominal Inside Diameter (ID) N/A .500 " | Wall Thickness N/A 0.063 " |
| TFH0508-063 /Asset/fep tubing04.JPG | N/A FEP Heavy Wall Tubing | Inside Diameter (ID) N/A 5/8 " | Outside Diameter (OD) N/A 3/4 " | Decimal Nominal Inside Diameter (ID) N/A .625 " | Wall Thickness N/A 0.063 " |
| TFH0708-063 /Asset/fep tubing04.JPG | N/A FEP Heavy Wall Tubing | Inside Diameter (ID) N/A 7/8 " | Outside Diameter (OD) N/A 1 " | Decimal Nominal Inside Diameter (ID) N/A .875 " | Wall Thickness N/A 0.063 " |
| TFH1000-063 /Asset/fep tubing04.JPG | N/A FEP Heavy Wall Tubing | Inside Diameter (ID) N/A 1 " | Outside Diameter (OD) N/A 1 1/8 " | Decimal Nominal Inside Diameter (ID) N/A | Wall Thickness N/A 0.063 " |
| TFH1108-063 /Asset/fep tubing04.JPG | N/A FEP Heavy Wall Tubing | Inside Diameter (ID) N/A 1-1/8 " | Outside Diameter (OD) N/A 1-1/4 " | Decimal Nominal Inside Diameter (ID) N/A | Wall Thickness N/A 0.063 " |
| TFH1104-063 /Asset/fep tubing04.JPG | N/A FEP Heavy Wall Tubing | Inside Diameter (ID) N/A 1 1/4 " | Outside Diameter (OD) N/A 1-3/8 " | Decimal Nominal Inside Diameter (ID) N/A | Wall Thickness N/A 0.063 " |
| TFH1308-063 /Asset/fep tubing04.JPG | N/A FEP Heavy Wall Tubing | Inside Diameter (ID) N/A 1-3/8 " | Outside Diameter (OD) N/A 1-1/2 " | Decimal Nominal Inside Diameter (ID) N/A | Wall Thickness N/A 0.063 " |
